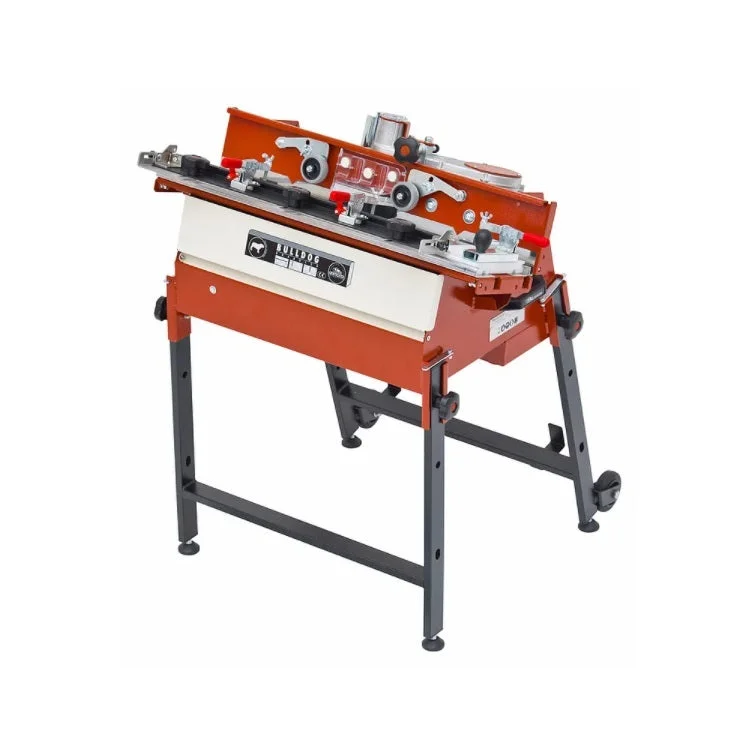

Raimondi Bulldog Profiling Machine Single Motor

Description

Raimondi Bulldog Profiling Machine Single Motor bevels and finished edges on porcelain, ceramics, glass-tile, stone, marble, granite, and more for tilers. Wheels are sold separately.

• Raimondi Bulldog Profiling machine with single-head bullnose.
• The gear ratio of the motor to the wheel is 1: 1.6
• Drive belt type poly V
• Motor 1.5 HP
• Motor 3,660 RPM
• Wheel performs 5,370 RPM
• Heavy duty water pumps for blade cooling
• Full bullnose and beveling.
• Create 1/2 bullnose
• Full bullnose
• 45° bevel work on marble, granite, porcelain, single and double-fired.
• Three levels of finish: rough | finished | polished
• The maximum length of shaping is 80cm (31.5″)
• Minimum tile width 4cm (1.5″)
• Maximum tile width 60cm (23 5/8″)
• Maximum depth shaping/radius half bullnose: 30mm (1 3/16″)
• Maximum depth of shaping full bullnose: 22mm (7/8″)
